Tilt Switch Control, Model No. 20-43 CSI
The Model 20-43 control unit is housed in a NEMA 4X enclosure with large green (“Normal”) and red (“Alarm”) indicating lights on the front cover. A 0-10 second adjustable time delay circuit in the control unit prevents momentary tilting of the switch from causing a false or premature contact transfer. Two normally-open and two normally-closed output contacts are available for connection to external alarms and/or controls. Interruption of line power causes a relay transfer.
CSI approved for use in Canada and USA.
If shown as Sold Out, please contact for quote.
The Model 20-43 control unit is housed in a NEMA 4X enclosure with large green (“Normal”) and red (“Alarm”) indicating lights on the front cover. A 0-10 second adjustable time delay circuit in the control unit prevents momentary tilting of the switch from causing a false or premature contact transfer. Two normally-open and two normally-closed output contacts are available for connection to external alarms and/or controls. Interruption of line power causes a relay transfer.
CSI approved for use in Canada and USA.
If shown as Sold Out, please contact for quote.
The Model 20-43 control unit is housed in a NEMA 4X enclosure with large green (“Normal”) and red (“Alarm”) indicating lights on the front cover. A 0-10 second adjustable time delay circuit in the control unit prevents momentary tilting of the switch from causing a false or premature contact transfer. Two normally-open and two normally-closed output contacts are available for connection to external alarms and/or controls. Interruption of line power causes a relay transfer.
CSI approved for use in Canada and USA.
If shown as Sold Out, please contact for quote.

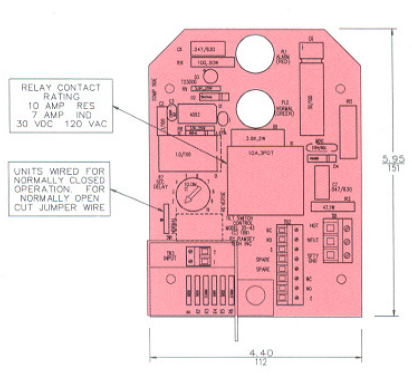

Ramsey Plastic Tilt Switch Control 20-43
Encloser Rating: NEMA 4X
Power Requirements: 115 or 230 VAC versions, 50/60Hz +/- 10%
Outputs: One (1) DPDT contact. Rate at 10 Amp at 115 VAC, non inductive
Time Delay: 0-10 seconds, adjustable
Circuitry Options: Select vertical or tilted probe position for “normal” condition
Rated for use in applications between -40°F to 158°F
Finish: Plastic
Simple installation
