Mercury-Free Tilt Sensor Probe, Model No. 21-54-NM-8M
A combination of opto-electronics and solid state circuitry inside the probe prevents jitter and provides stability not found in the typical non-mercury options. The precision manufacturing of the tilt probe provides sensing of a 15 degree inclination in a full 360 degrees of direction. the normally-closed contacts are caused to open. This Stainless Steel probe has fully encapsulated electronics.
This product meets CSA approvals for use in Normal and Hazardous Areas (rating of Class I, Divisions 1 and 2, Groups A, B, C, and D T2A, Class II, Division 1, Groups E, F, and G, Class II, Division 2, Groups F, and G Class III T160°C. Ta = 85°C max).
If shown as Sold Out, please contact for quote.
A combination of opto-electronics and solid state circuitry inside the probe prevents jitter and provides stability not found in the typical non-mercury options. The precision manufacturing of the tilt probe provides sensing of a 15 degree inclination in a full 360 degrees of direction. the normally-closed contacts are caused to open. This Stainless Steel probe has fully encapsulated electronics.
This product meets CSA approvals for use in Normal and Hazardous Areas (rating of Class I, Divisions 1 and 2, Groups A, B, C, and D T2A, Class II, Division 1, Groups E, F, and G, Class II, Division 2, Groups F, and G Class III T160°C. Ta = 85°C max).
If shown as Sold Out, please contact for quote.
A combination of opto-electronics and solid state circuitry inside the probe prevents jitter and provides stability not found in the typical non-mercury options. The precision manufacturing of the tilt probe provides sensing of a 15 degree inclination in a full 360 degrees of direction. the normally-closed contacts are caused to open. This Stainless Steel probe has fully encapsulated electronics.
This product meets CSA approvals for use in Normal and Hazardous Areas (rating of Class I, Divisions 1 and 2, Groups A, B, C, and D T2A, Class II, Division 1, Groups E, F, and G, Class II, Division 2, Groups F, and G Class III T160°C. Ta = 85°C max).
If shown as Sold Out, please contact for quote.

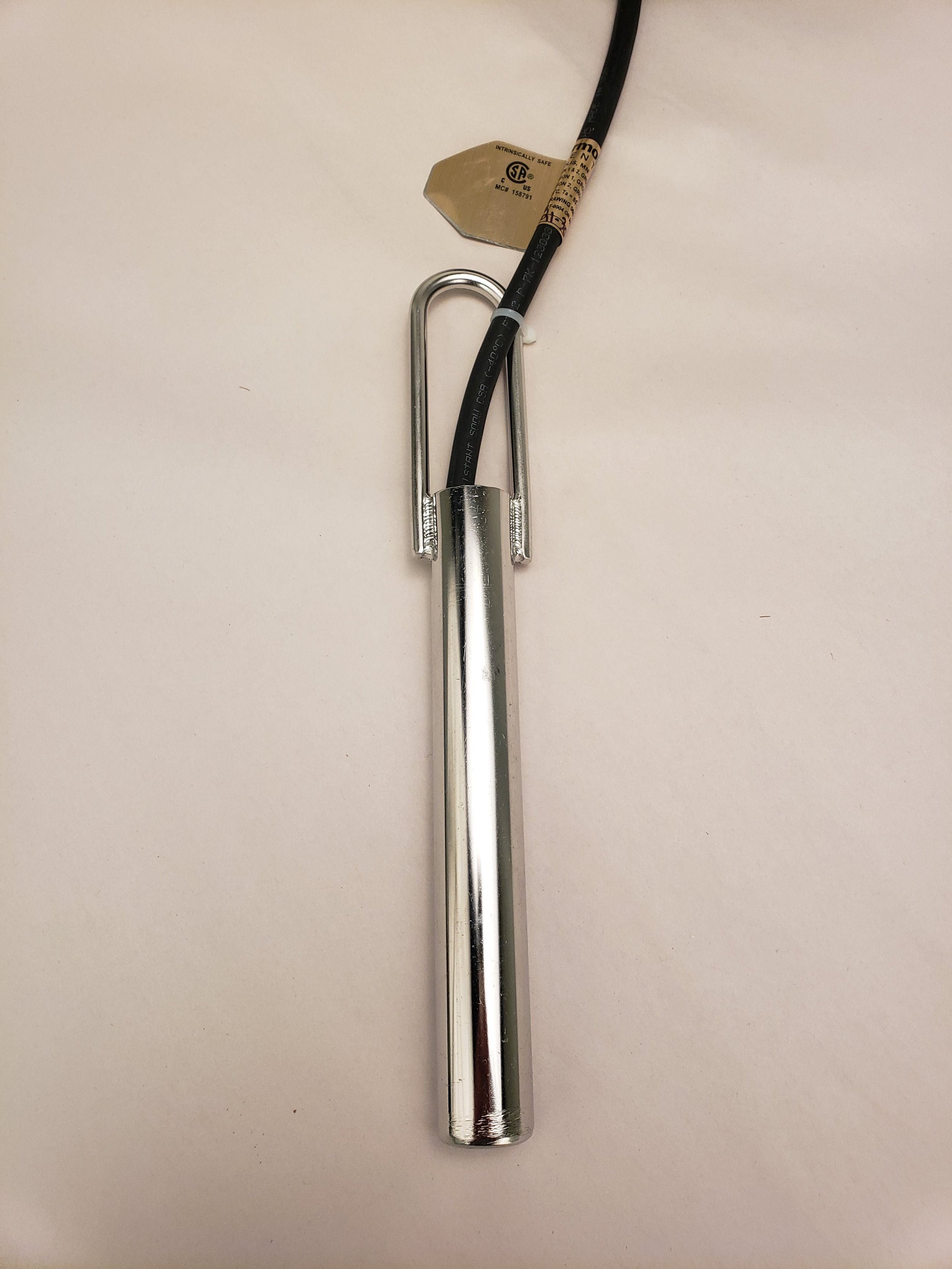

Ramsey Mercury-Free, SS Tilt Sensor 21-54-NM
1" Stainless Steel, NEMA 4X Probe with 8 Meter
Contact Rating: 1 Amp at 24VDC, Non-inductive
Rated for use in applications between -40°F to 122°F
Finish: 304 SS
Certifications: CSA, cCSAus, CE
Rugged, abrasion-resistant tilt sensor
Simple installation
All probes include mounting hardware
PRODUCT LITERATURE
Resellers please contact us for bulk discounts.
